Digital Stereo Sound System

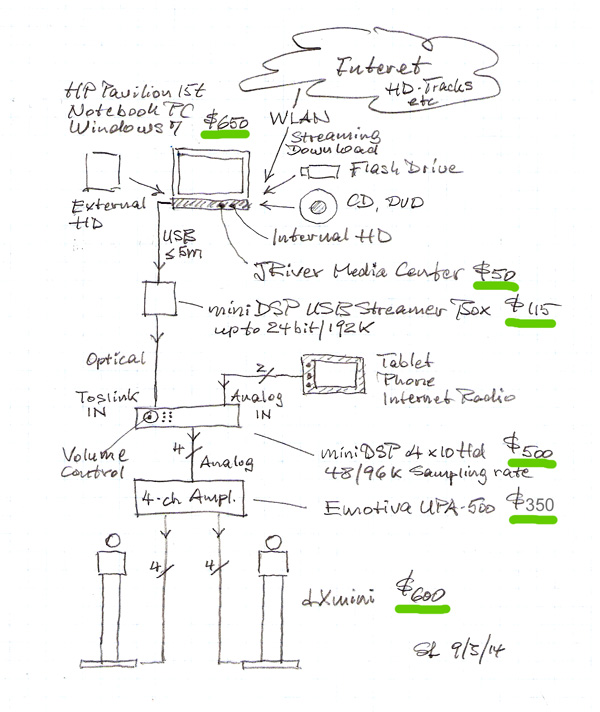

A music playback system with outstanding performance, yet
economical in price, can be assembled with a computer as the media center. Music
is streamed via USB to a miniDSP 4x10 Hd, which act as preamplifier with volume
control, with digital or analog input selection, crossover and equalizer for the
LX521. The output of the 4x10 Hd provides woofer and midrange/tweeter signals to
four power amplifier channels to drive left and right LXmini.
This sound system will be demonstrated in Room 418
at the Rocky Mountain
Audio Fest 2014 in Denver, CO.
quality stereo sound system

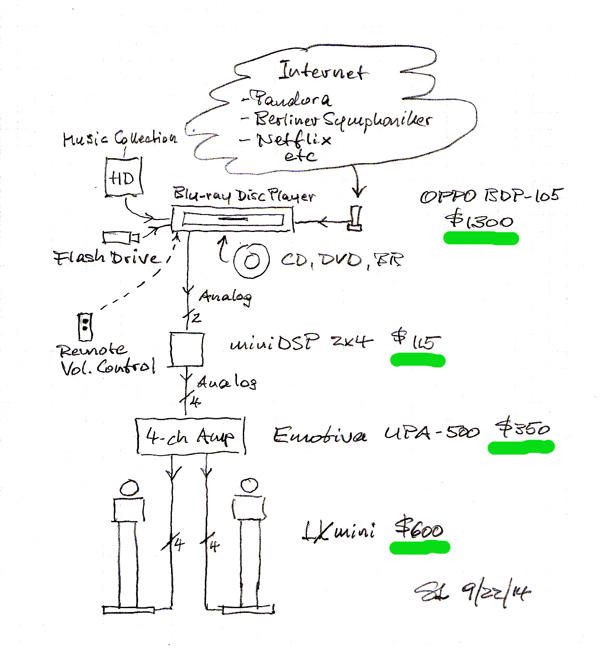

There are many options for assembling a reference quality
sound system using the LXmini speakers. In the example below I use an OPPO
universal disk player's superb analog output to drive the miniDSP 2x4. The green
underlined prices add up to $2365.
Replacing the miniDSP 2x4 with a miniDSP 4x10Hd would add
$385, for a total of $2750. You can now take the digital output from the OPPO to
drive the miniDSP 4x10Hd and avoid the D/A conversion in the OPPO and the A/D
conversion of the miniDSP 2x4. These conversions cannot help with system
performance, but I cannot say that I hear a degradation.
the cost effectiveness of the Notebook PC based Digital Stereo Sound System
above at $2265, as compared to the $2750 OPPO based system, while either one
provides the LXmini's highest performance level.
Instead of the OPPO you could use an iPad or smart phone,
if that is where you keep your music collection or where you stream music from
the Internet. These devices have a built-in volume control, which must be used
when driving the miniDSP 2x4 directly, without a preamplifier.
Generally, the required LXmini
crossover/equalizing can be realised in the analog domain (ASP
based) or in the digital domain (DSP based)
DSP based crossovers (Nov 2018) are e.g:
- Mini DSP 2x4 , 2x4HD, 4x10HD
Includes high-end DSP,
remote volume control, preamp and
4 power amps from Hypex. Line-out plugs may connect to an external woofer
amplifier (LXmini+2) : €1890

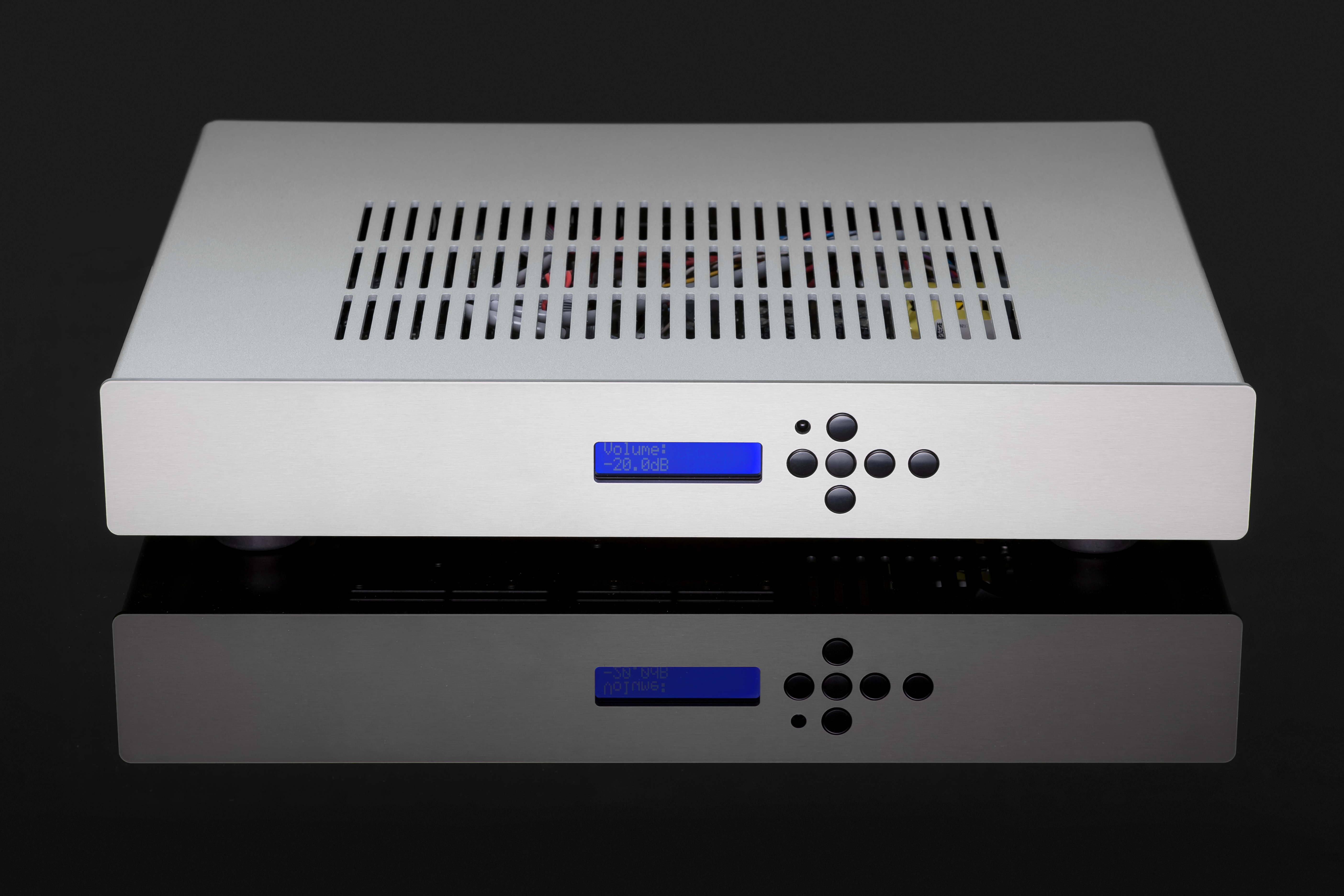

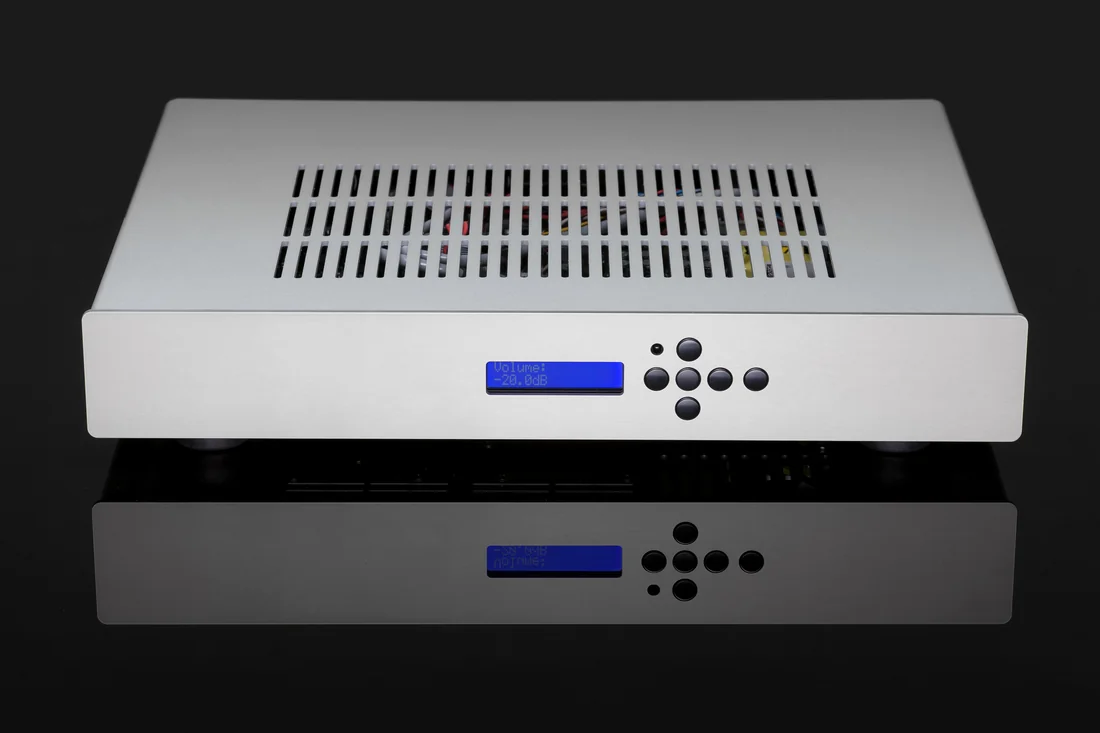

PowerBox 6pro NCore ....
"All in one" solution.
"All in one" solution.
Includes high-end DSP, preamp and
6 Ncore power amps from Hypex, including woofer amplifiers. Remote volume control.
Allows future upgrades to LX521.4 operation by adding a PowerBox 6pro NCore (Follower, €2490 )
See Burning Amp 2016
House 2017 and PB
